Lance Tube Product Range

image of oxygen lance tubes

Hollow Lance Tubes

ERW mild steel pipes with higher tensile strength (SAE1008-Hot Rolled) to prevent bending during lancing. Used where combustible material is present: ferroalloy, copper, steel, platinum production, taphole opening, and scrap cutting.

table showing specifications of hollow lance tubes, including dimensions, wall thickness, and recommended applications for each size
Let Us Help You

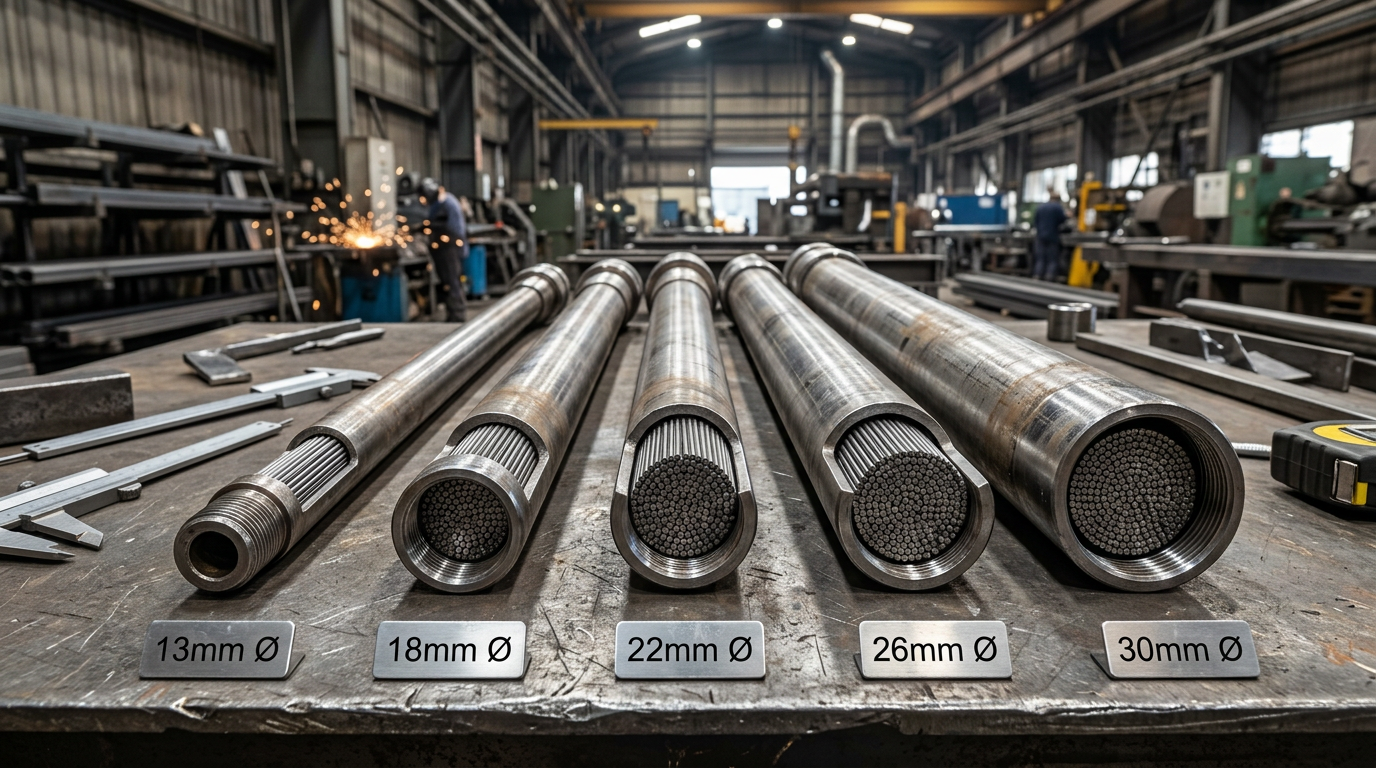

image of wire packed lance tubes showing different sizes

Wire Packed Lance Tubes

Heats and burns steel in pressurized oxygen. Basic iron-oxygen reaction generates >3,500°C to cut, drill, or melt refractory material, moulds, and ingots. Low-cost method for extreme flame temperatures.

table showing specifications of wire packed lance tubes, including dimensions, wall thickness, and recommended applications for each size
Let Us Help You

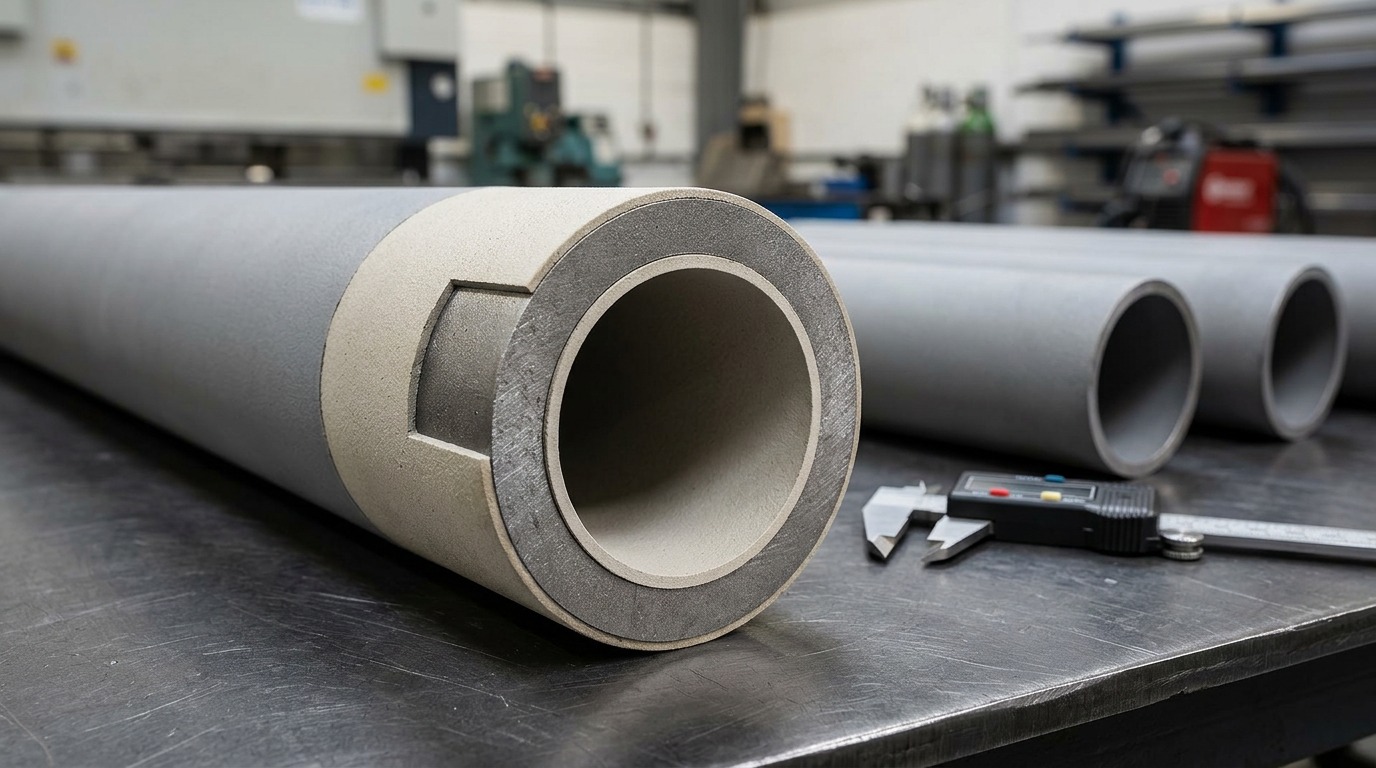

image of calorised ceramic coated lance pipes

Calorised Ceramic Coated Lance Pipes

Low carbon, thin-walled pipe with high strength-to-weight ratio. Calorised 100-150 microns deep, then coated with high-alumina ceramic on inner/outer surfaces for superior spalling resistance at high temperatures.

Let Us Help You

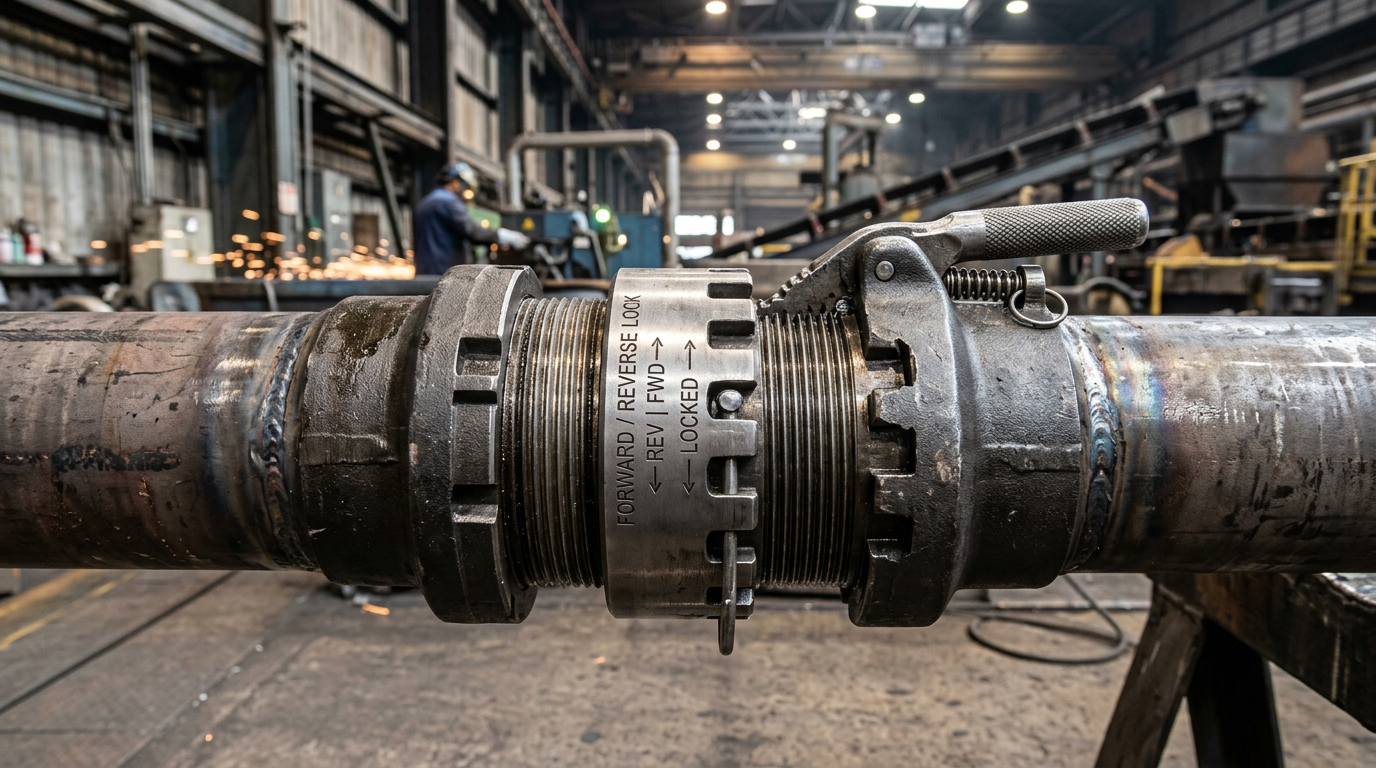

image of forward-reverse lock system9

Forward-Reverse Lock (FRL) System

Advanced locking system to connect two or more thermal lance pipes quickly without oxygen leaks or flashbacks. Work in straight or flexible mode. Enables faster, safer, more reliable cutting.
